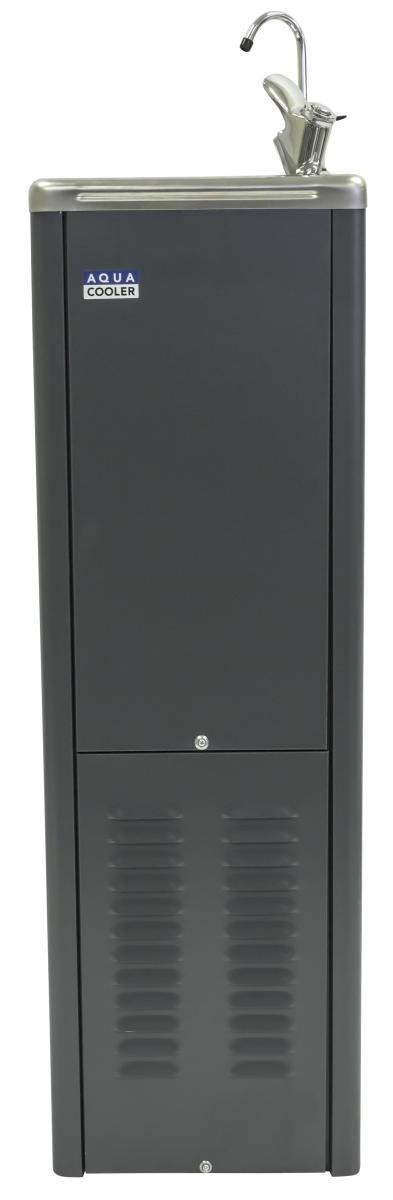

Aqua Cooler M3F 10lt Per Hour Filtered Drinking Fountain

Online Price Includes GST and Shipping

$1,299.00
QTY:
Manufacturer:
AQUA COOLER Australia
Model:
M3F Filtered
The most popular drinking fountain in Australia. With a 5 year compressor warranty these systems are ideal for schools and factories. Also available in (19 Litres per hour) OR (26 litres per hour) capacities.

Special Package includes Filter, Bubbler, Glass Filler, GST and Delivery

To Download Data Sheet  Click Here


Water Cooler Superstore will beat any written quote! PH 1300 55 32 82 or 0414 602800.




The M Series mains connected water cooler is a hardwearing, sturdy unit perfect for schools, construction sites, hospitals, factories and many other environments.

Models come in low, medium and high capacity with spout only or spout AND glass filler for filling glasses or bottles.



A taste and odour filter is fitted. This compact filter removes taste, odour and chlorine. The filter is a proprietary, carbon-block filter of greater density with a 5 micron filtration pad to prevent carbon and sediment bypass.

The snapseal filter features an SQC Sanitary Quick Change design for easy installation and cartridge changes.

  • Robust construction to ensure longevity
  • Polished stainless steel top
  • Front panel removes for ease of servicing
  • Optional stainless steel cabinets
  • Simple filter changes
  • Adjustable, tamper proof non-squirt bubbler and glass filler
  • PROUDLY AUSTRALIAN MADE

diagram of m series drinking fountain

WATER RESERVOIR
All have a 1.5 litre tank within the chilling chamber to meet peak usage periods. This tank is fabricated from seamless hard drawn copper and tin plated for your safety.

  • M2/M3 – 10 litres per hour
  • M4/M5 – 19 litres per hour
  • M10/M11 – 26 litres per hour

REFRIGERATION
All refrigerant gases are non-toxic, non-flammable and environmentally
sympathetic. The refrigerant flow is controlled by a capillary tube,
which has no moving parts. To give maximum heat exchange a
suction line is fitted.

  • M2/M3 – Uses 250 gms of R134A refrigerant
  • M4/M5 – Uses 190 gms of R134A refrigerant
  • M10/M11 – Uses 127 gms of R22 refrigerant

WATER FLOW CONTROLS
The bubbler is rated to supply 1.7 litres per minute at mains water pressure of between 140 and 700kPa. An automatic, self-regulating control is fitted to overcome varying mains pressure.

WATER CONNECTIONS
Water inlet – 1/2” female B.S.P.
Water outlet – 40mm Female F.P.V.C. pipe

THERMOSTAT CONTROL
The thermostat is factory pre-set.

COMPRESSORS
M2/M3 - 1/8 h.p. capacity 138 watts
M4/M5 – 1/5 h.p. capacity 230 watts
M10/M11 – 1/4 h.p. capacity 430 watts

CONDENSER
Copper tube and expanded aluminium fin.

ELECTRICAL
240 volts, 50Hz. A 2 metre house cable and 3 pin plug is supplied.

PERFORMANCE TO ARI 1010-94 STANDARD
Water Inlet – 26.7ºC
Water Outlet – 10ºC
Ambient Air – 32.2ºC.

WEIGHT - PACKED
M2/M3 - 26kgs
M4/M5 - 28kgs
M10/M11 - 30kgs

DIMENSIONS
Width – 350mm Container Capacity
Depth – 350mm 20ft – 192 units
Height – 1100mm 40ft – 396 units

WARRANTY
Twelve months comprehensive coverage. Five years for compressor replacement

Other Features

M2F, M3F, M4F, M5F, M10F & M11F HAVE FILTERS FITTED. A taste and odour filter is fitted. This compact filter removes taste, odour and chlorine. The filter is a proprietary, carbon-block filter of greater density with a 5 micron filtration pad to prevent carbon and sediment bypass. The snapseal filter features an SQC Sanitary Quick Change design for easy installation and cartridge changes. A dual “O” ring, a bayonet lock system, ensures product performance. These filters are for use with potable water only.

SERVICE
The front panel removes to give instant access to all components and controls. “Hassle Free” filter changes and services can be undertaken without disconnecting the plumbing.

INSTALLATION NOTE
With water pressure above 700kpa a pressure reduction valve should be fitted.
